Rotary Glass Container Screen Printing Machine

  • Product Item：CNC03
  • 3 color screen printing machine with Full Servo System
  • 2.360 degrees printing for round,square and oval bottles,containers
  • 3.Can with 2 cameras registration
  • 4. Suitable to printing plastic & glass bottles
    • CNC Glass Container Screen Printing Machine  , Screen Printing Machine for GLass Bottles  , glass container screen printer  , China supplier of glass container screen decorating
    Inquiry Send Email PDF

    Description

    Rotary Glass Container Screen Printing Machine

    Product Name: Glass Container Screen Printing Machine
    Model: CNC03


    Full Servo Glass Container Screen Printing Machine

    Applications:
    Glass Container Screen Printing Machine is for printing all shapes of glass and palstic containers, cups,mugs,bottles all around in one time printing.It is suitable for glass bottle printing with thermoplastic ink, UV ink or LED UV ink. It’s popular used in wine bottle and cosmetic bottle industry’s screen printing.This automatic  screen printing machine is controlled by high accurate indexer,fully servo driven system. Vision system and mechanical registration optional.


    Features:
    1.Our Automtatic Screen printing machine can print plastic and glass bottles,containers etc
    2.Can 360 degrees printing any shape even its sqaure shape.
    3.Automatic loading and unloading system
    4.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
    5.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
    up/down all driven by servo motors.
    6.All tooling with individual servo motor driven for rotation
    7.Fast tooling changeover time, All parameters automatic setting by touch screen.
    8.All servo motors with industrial PLC control & touch screen operation system, it is available for further maintenance and program upgrading by romote controlling.
    9.Safety operation with CE

    Options:
    1.Camera vision system to check the mold line for cylindrical bottles, to avoid printing on the line,You can choose use one camera or two cameras on the machine
    2.It can be equipped with heating system for thermo plastic ink.

    Parameters:
    1.Bottle size: Bottle Dia.30-100mm, Bottle Height:50-330mm
    2.Speed: 35-40pcs/min
    3.Air Pressure: 6-7 bar
    4.Power: 380V 3phase 50Hz 25Kw
    5.Machine Weight:3500kgs

    6.Machine Packing Size(L*W*H):3100*2800*2250mm


    CNC 3 Color Plastic PET Bottle Screen printing Machine

    3 Color Glass Perfume Bottle Screen Printing and hot stamping machine

    Glass Cosmetic Lotion Bottle Screen printing Machine:

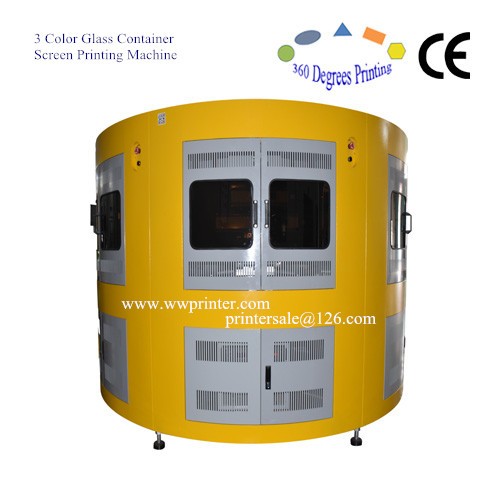

    3 color glass container screen printing machine

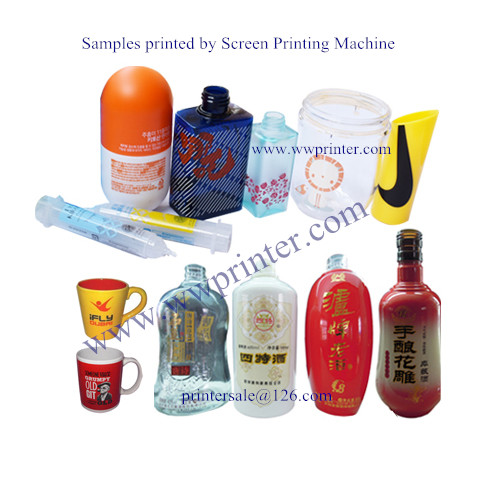

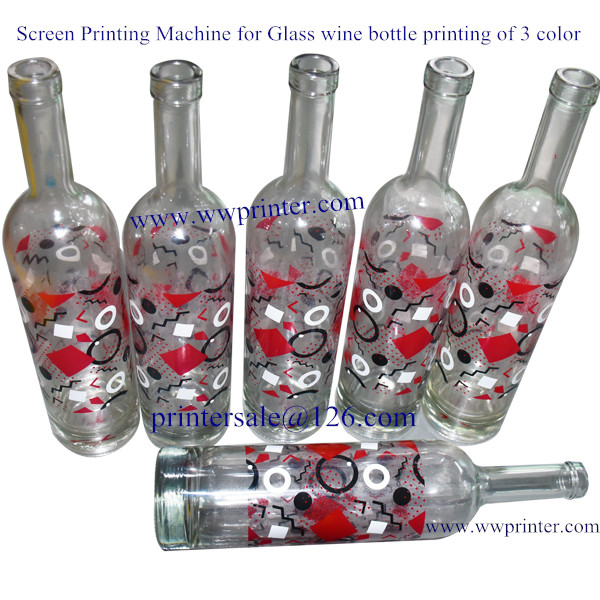

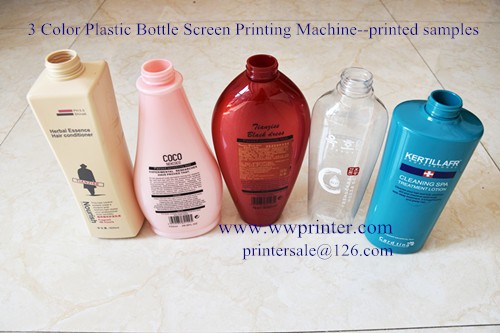

    Glass wine bottle screen printed samplesscreen printing samples for plastic bottle and glass bottlesplastic bottle screen printing sample

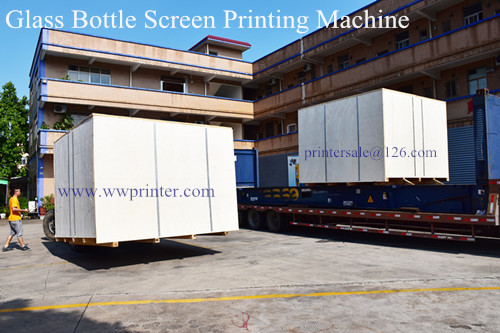

    full servo screen printing machine for glass wine bottlesglass bottle screen printer exportingChina screen printing machine exporting

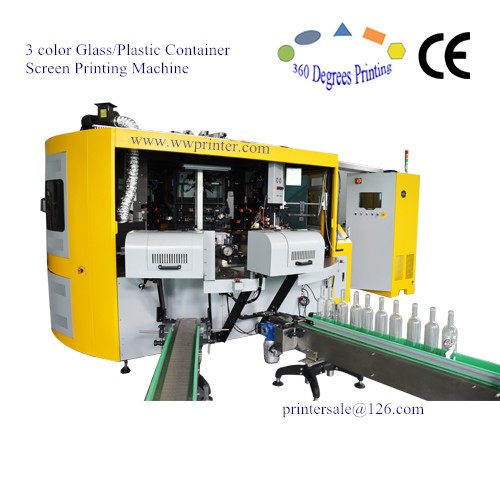

    Glass & Plastic Bottle CNC screen Printing Machine
