Description

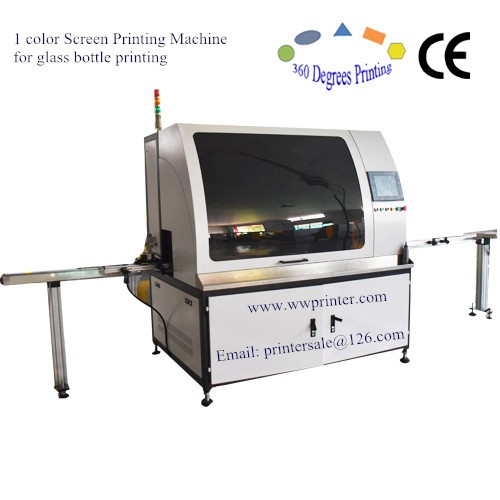

Automatic Glass Perfume Bottle Screen Printer
Product Name: Automatic Glass Perfume Bottle Screen Printer
Model: 3D
Applications:

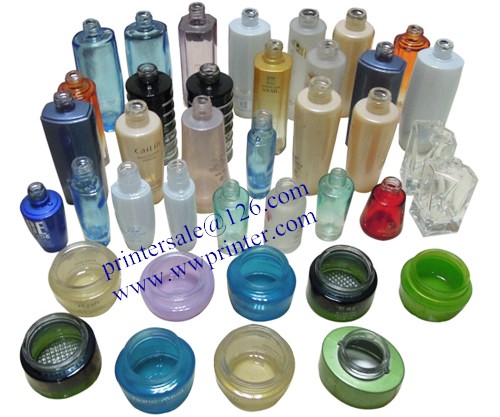

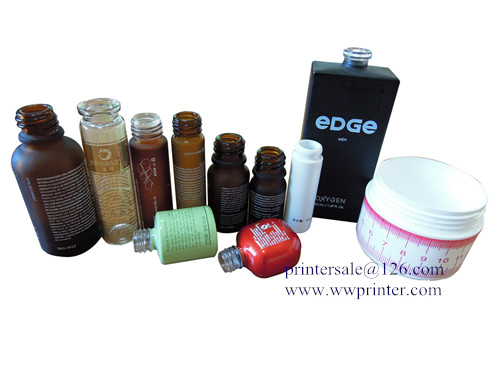

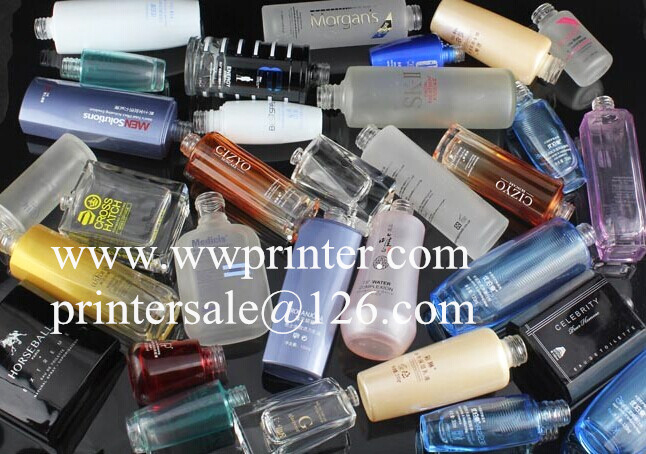

This Automatic Glass Perfume Bottle Screen Printer (CNC Screen Printing Machine) is fit for multi colors decoration of glass bottles, glass cups, glass mugs etc at high production speed.It can print any shape of containers with 360 degrees printing in once time printing.
Features:
1.Automatic loading and unloading system with multi axis servo robot;
2.Automatic UV curing with high efficiency electrode UV system;
3.Automatic printing system with all servo driven: printing head,mesh frame,rotation,container
up/down all driven by servo motors.
5.Fast tooling changeover time, it's about 20 minutes for each color.All parameters automatic setting by touch screen.
6.With PLC control & touch screen operation system, internet cable connection available, easy for future maintenance and upgrading
8.Safety operation with CE
9.Can use UV ink or thermoplastic ink (high temperature ink)

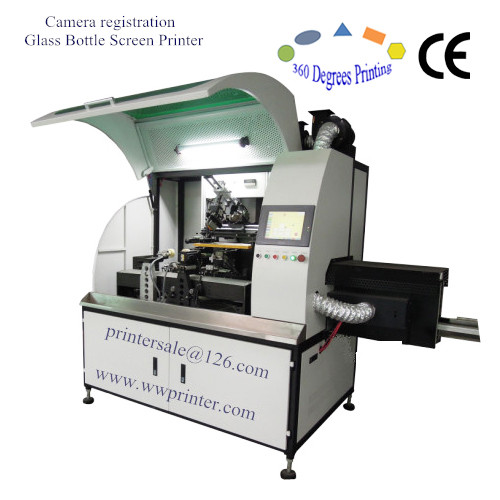

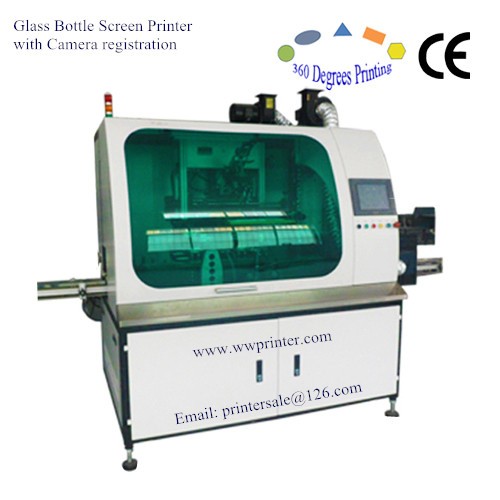

10.This glass perfume bottle screen printer can equip with one or two visual registration system as per customer requirement.
Options:
Additional module up to 10 units for multi color printing
Parameters:
1.Bottle size: Bottle Dia.20-90mm, Bottle Height:50-170mm
2.Speed: 35-40pcs/min
3.Air Pressure: 5-6bar
4.Power: 380V 3phase 50Hz 7.5Kw
5.Machine Weight:800kgs
6.Machine Size:2400*1500*1700mm
Glass Perfume Bottle Screen Printer video:
Oval Glass Bottle Printing Machine:
