6 Color CNC Glass Bottle Screen Printer6 Color CNC Glass Bottle Screen Printer6 Color CNC Glass Bottle Screen Printer

6 Color CNC Glass Bottle Screen Printer

  • Product Item:CNC06
  • Full Servo System
  • 360 degrees printing for round,square and oval bottles
  • can with two camera registration
  • can print 6 colors or more
  • CNC glass bottle screen printer  , China supplier of CNC Glass bottle screen printer
    Inquiry Send Email PDF

    Description

    6 Color CNC Glass Bottle Screen Printer

    Product Name: 6 Color CNC Glass Bottle Screen Printer
    Model: CNC06

    6 Color CNC Glass Bottle Screen Printer can print different shapes of glass and plastic containers, cups,mugs,bottles with 6 colors all around in one time printing.It is suitable for glass bottle printing with thermoplastic ink, UV ink or LED UV ink. It’s popular used in wine bottle and cosmetic bottle industry’s screen printing.The CNC glass bottle screen printer is controlled by high accurate indexer,fully servo driven system. Vision system and mechanical registration optional.

    Features:
    1.Our both can print plastic and glass bottles,glass cups, perfume bottles,nail polish bottles,plastic bottles,containers,caps and covers etc
    2.Can 360 degrees printing any shape even its squaure shape.
    3.Flame treatment system for best adhesion on glass for UV ink printing
    4.It can decorate container with or without ramp which is for Color registration.
    5.Safety operation with CE; Automatic loading and unloading system
    6.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
    7.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
     up/down all driven by servo motors.
    8.All tooling with individual servo motor driven for rotation
    9.Fast tooling changeover time, All parameters automatic setting by touch screen.
    10.All servo motors with industrial PLC control & touch screen operation system, it is available for further
      maintenance and program upgrading by remote controlling.

    Options:
    1.Camera vision system to check the mold line for cylindrical bottles, to avoid printing on the line,You can choose use one camera or two cameras on the machine
    2.It can be equipped with heating system for thermo plastic ink.

    Parameters:
    1.Bottle size: Bottle Dia.30-100 mm, Bottle Height:50-33 0mm
    2.Speed: 40-45pcs/min
    3.Air Pressure: 6-7 bar
    4.Power: 380V 3phase 50Hz 40 Kw
    5.Machine Weight:4500 kgs

    6.Machine Packing Size(L*W*H):4300*3850*2250 mm


    Automatic 6 Color CNC Glass Bottle Screen Printer videos:

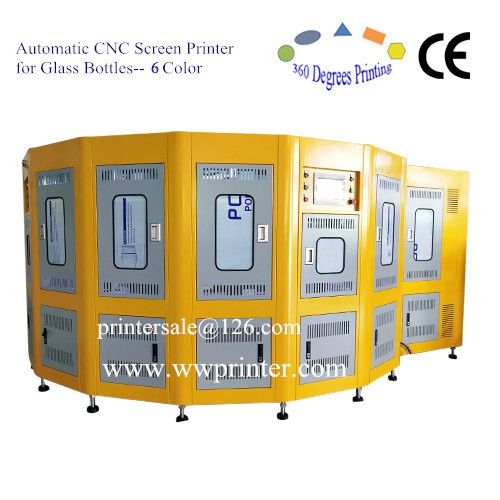

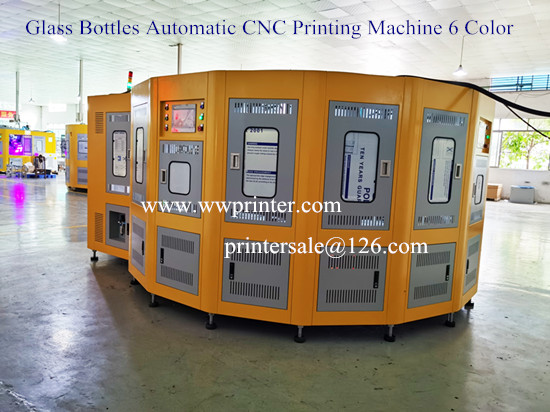

    Automatic 6 Color CNC Glass Bottle Screen Printing machine photos:
