Description
Automatic 8 Color Bottle/Container Screen Decoration Machine
Product Name: 8 Color Bottle/Container Screen Decoration Machine
2.Can 360 degrees printing on any shape even its square shape.
3.Flame treatment system for best adhesion on glass and plastic for UV ink printing
4.It can decorate container with or without ramp which is for Color registration.
5.Safety operation with CE; Automatic loading and unloading system
6.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
7.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
8.All tooling with individual servo motor driven for rotation
9.Fast tooling changeover time, All parameters automatic setting by touch screen.
10.All servo motors with industrial PLC control & touch screen operation system, it is available for further
maintenance and program upgrading by romote controlling.
Options:
1.Camera vision system to check the mold line for cylindrical bottles,to avoid printing on the line,You can choose use one camera or two cameras on the machine
2.It can be equipped with heating system for thermo plastic ink.
2.Speed: 40-45pcs/min
3.Air Pressure: 6-7 bar
4.Power: 380V 3phase 50Hz 50Kw
5.Machine Weight:4500kgs
6.Machine Packing Size(L*W*H):4800*4900*2250mm
Product Name: 8 Color Bottle/Container Screen Decoration Machine
Model: CNC08

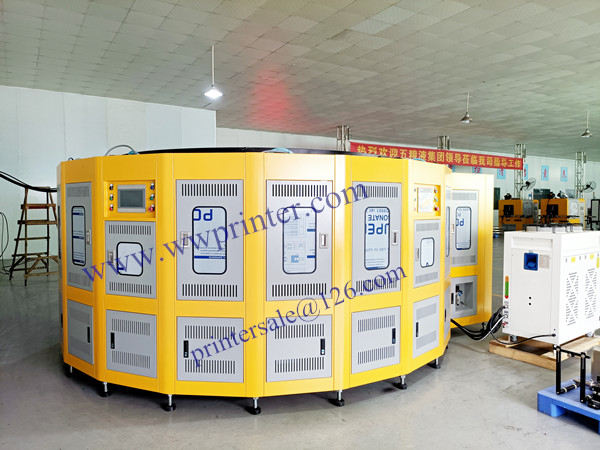

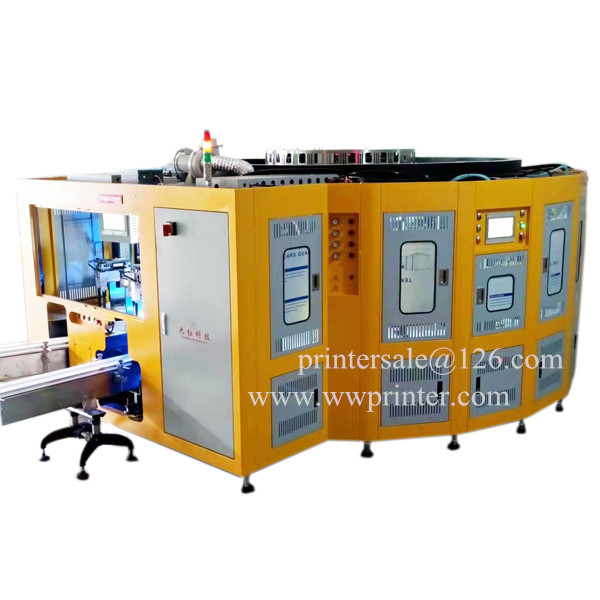

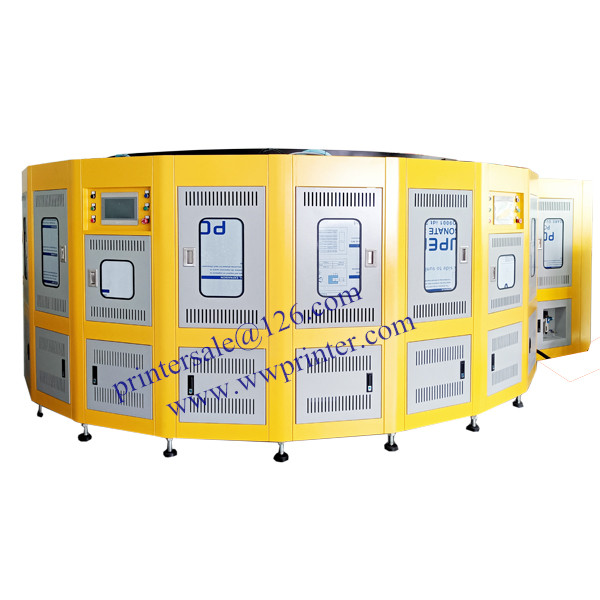

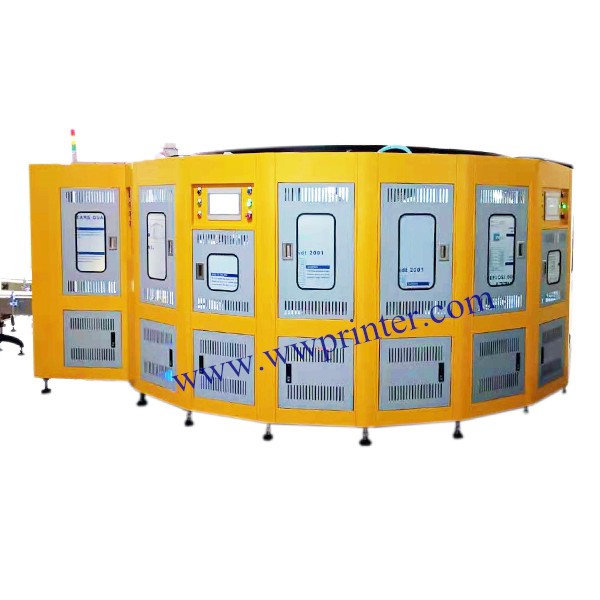

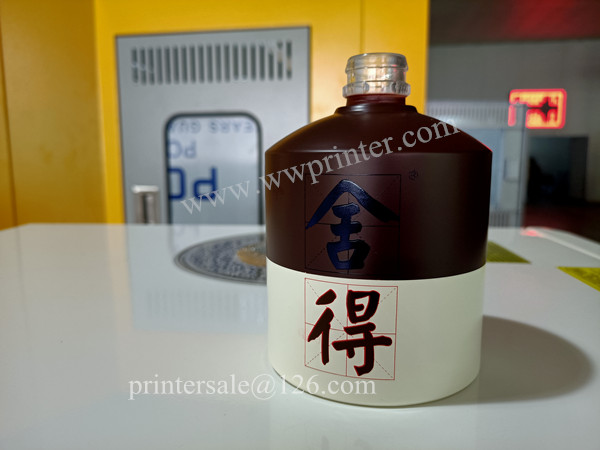

Automatic Bottle/Container Screen Decoration Machine is a full servo system.It can print plastic and glass bottles and Containers with eight colors at one time printing.

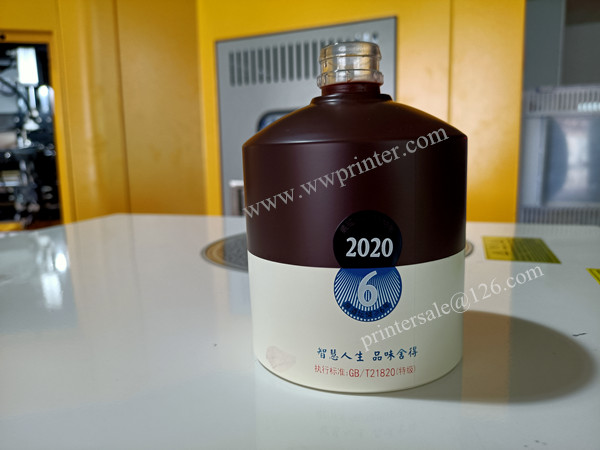

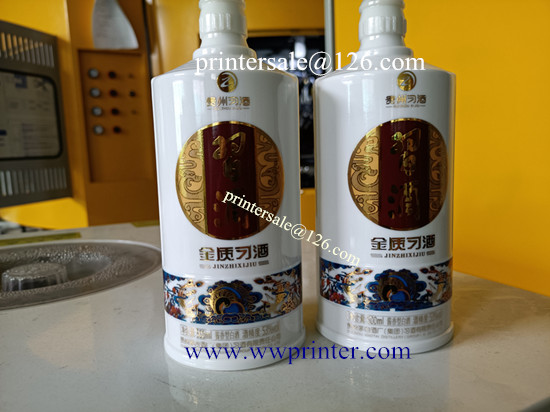

It is suitable for glass/plastic bottle printing with thermoplastic ink, UV ink or LED UV ink. It's popular used in wine bottle and cosmetic bottle industry's screen printing.Features:

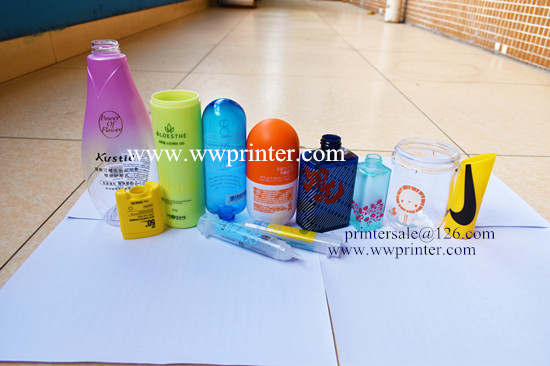

1.Can print plastic and glass bottles,containers,cups, tubes,covers,caps etc2.Can 360 degrees printing on any shape even its square shape.
3.Flame treatment system for best adhesion on glass and plastic for UV ink printing
4.It can decorate container with or without ramp which is for Color registration.
5.Safety operation with CE; Automatic loading and unloading system
6.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
7.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
8.All tooling with individual servo motor driven for rotation
9.Fast tooling changeover time, All parameters automatic setting by touch screen.
10.All servo motors with industrial PLC control & touch screen operation system, it is available for further
maintenance and program upgrading by romote controlling.
Options:
1.Camera vision system to check the mold line for cylindrical bottles,to avoid printing on the line,You can choose use one camera or two cameras on the machine
2.It can be equipped with heating system for thermo plastic ink.
Parameters:
1.Bottle size: Bottle Dia.30-100mm, Bottle Height:50-330mm2.Speed: 40-45pcs/min
3.Air Pressure: 6-7 bar
4.Power: 380V 3phase 50Hz 50Kw
5.Machine Weight:4500kgs
6.Machine Packing Size(L*W*H):4800*4900*2250mm
